Setrab ProLine Oil Coolers
Engine Oil Coolers
ProLine STD Range
Setrab ProLine STD range oil coolers are the most flexible high-performance oil coolers on the market. The ProLine STD series integrates low-profile 22mm female ports for adaptability to any system using ProLine adapter fittings.
The stacked-plate style of Setrab's STD range offers the advantage of many height possibilities within the various series' widths. In addition, this technique coupled with state-of-the-art brazing technology makes for a durable, highly-efficient, and beautifully simplistic design that is often imitated but never replicated.
1-series Setrab ProLine STD Oil Coolers |
||||||||||
| HP range | Part Number | A | B | C | D | E | Vol. (qt.) | Wt. (lb.) | ∆P (psi) | btu/hr range |
|---|---|---|---|---|---|---|---|---|---|---|
| 100-150 | 50-119-7612 | 6.42 | 5.75 | 4.80 | 7.48 | 8.27 | 0.22 | 1.55 | 2.2/2.6 | 13,000-17,500 |
| 160-190 | 50-125-7612 | 6.42 | 7.60 | 4.80 | 7.48 | 8.27 | 0.28 | 1.00 | 2.1/2.4 | 17,000-22,000 |
| 170-230 | 50-134-7612 | 6.42 | 10.39 | 4.80 | 7.48 | 8.27 | 0.43 | 2.70 | 1.0/1.5 | 21,000-27,000 |
| 175-275 | 50-144-7612 | 6.42 | 13.53 | 4.80 | 7.48 | 8.27 | 0.59 | 3.30 | 1.0/1.3 | 26,000-35,000 |
| 300-400 | 50-150-7612 | 6.42 | 15.31 | 4.80 | 7.48 | 8.27 | 0.65 | 3.75 | 0.9/1.2 | 29,000-40,000 |
| 325-425 | 50-160-7612 | 6.42 | 18.31 | 4.80 | 7.48 | 8.27 | 0.80 | 4.42 | 0.6/1.1 | 33,000-45,000 |
| 50-165-7612 | 6.42 | 19.89 | 4.80 | 7.48 | 8.27 | 0.85 | 4.60 | |||
| 600+ | 50-172-7612 | 6.42 | 22.13 | 4.80 | 7.48 | 8.27 | 0.95 | 5.30 | 0.8/1.0 | 40,000-60,000 |
6-series Setrab ProLine STD Oil Coolers |
||||||||||
| HP range | Part Number | A | B | C | D | E | Vol. (qt.) | Wt. (lb.) | ∆P (psi) | btu/hr range |
| 90-130 | 50-610-7612 | 11.14 | 2.99 | 9.53 | 12.20 | 12.99 | 0.20 | 1.55 | 4.8/na | 15,000-20,000 |
| 170-200 | 50-613-7612 | 11.14 | 3.94 | 9.53 | 12.20 | 12.99 | 0.25 | 1.90 | 4.0/4.5 | 19,000-26,000 |
| 190-220 | 50-616-7612 | 11.14 | 4.80 | 9.53 | 12.20 | 12.99 | 0.30 | 2.30 | 3.6/3.8 | 23,000-32,000 |
| 220-310 | 50-619-7612 | 11.14 | 5.75 | 9.53 | 12.20 | 12.99 | 0.40 | 2.65 | 2.5/3.3 | 27,000-37,000 |
| 325-425 | 50-625-7612 | 11.14 | 7.60 | 9.53 | 12.20 | 12.99 | 0.55 | 3.40 | 2.0/2.5 | 33,100-46,000 |
| 400-475 | 50-634-7612 | 11.14 | 10.39 | 9.53 | 12.20 | 12.99 | 0.75 | 4.50 | 1.7/2.2 | 43,000-59,000 |
| 450-550 | 50-640-7612 | 11.14 | 12.20 | 9.53 | 12.20 | 12.99 | 0.90 | 5.30 | 1.6/2.1 | 45,000-67,000 |
| 600+ | 50-650-7612 | 11.14 | 15.31 | 9.53 | 12.20 | 12.99 | 1.10 | 6.50 | 1.1/1.8 | 56,000-78,000 |
| 600+ | 50-660-7612 | 11.14 | 18.31 | 9.53 | 12.20 | 12.99 | 1.30 | 7.75 | 1.0/1.7 | 63,000-90,000 |
9-series Setrab ProLine STD Oil Coolers |
||||||||||
| HP range | Part Number | A | B | C | D | E | Vol. (qt.) | Wt. (lb.) | ∆P (psi) | btu/hr range |
| 170-200 | 50-910-7612 | 14.09 | 2.99 | 12.48 | 15.16 | 15.94 | 0.25 | 1.95 | 6.1/na | 19,000-27,000 |
| 220-310 | 50-915-7612 | 14.09 | 4.53 | 12.48 | 15.16 | 15.94 | 0.40 | 2.75 | 4.5/5.2 | 27,000-39,000 |
| 300-400 | 50-920-7612 | 14.09 | 6.06 | 12.48 | 15.16 | 15.94 | 0.55 | 3.55 | 3.0/4.2 | 35,000-50,000 |
| 400-475 | 50-925-7612 | 14.09 | 7.60 | 12.48 | 15.16 | 15.94 | 0.75 | 4.35 | 2.6/3.5 | 42,000-60,000 |
| 450-550 | 50-934-7612 | 14.09 | 10.39 | 12.48 | 15.16 | 15.94 | 1.00 | 5.85 | 2.3/3.3 | 53,100-72,100 |
| 600+ | 50-948-7612 | 14.09 | 14.70 | 12.48 | 15.16 | 15.94 | 1.43 | 8.00 | 1.8/3.1 | 69,000-96,000 |
Setrab oil coolers feature M22 female ports, adaptable to virtually any size using SUSA ProLine Adapter Fittings.
EOC hp and btu/hr range based on specific performance parameters that if varied may result in different performance results. Low EOC hp and btu/hr range based on typical wet sump high-performance application and typical variable parameters. High EOC hp and btu/hr range based on typical dry sump high-performance application and typical variable parameters. Wet Sump Parameters include: oil flow rate, 5gpm; 20/50 engine oil or similar; 130ºF ITD; 60mph airflow. Dry Sump Parameters include: oil flow rate, 8gpm; 20/50 engine oil or similar; 140ºF ITD; 80mph airflow.
ProLine SLM Range
Setrab ProLine SLM range oil coolers were developed for demanding applications where space is also very limited. ProLine SLM coolers feature the adaptability of the 22mm ProLine system, end-tank ports, and threaded mounting bosses.
The slimmed-down package is over 20% thinner than the ProLine STD range.
The design of Setrab's SLM range allows for a multitude of widths that are not possible in other style coolers.
Setrab ProLIne SLM rangeDepth: 1.57 in |
||||||||||
| HP range | Part Number | A | B | C | D | E | Vol. (qt.) | Wt. (lb.) | ∆P (psi) | btu/hr range |
|---|---|---|---|---|---|---|---|---|---|---|
| 90-130 | 53-10744-01, SLM 250-10 |
9.84 | 12.60 | 3.50 | 4.06 | 7.87 | 0.31 | 1.30 | 3.5-4.0 | 15,000-20,000 |
| 160-190 | 53-10745-01, SLM 250-14 |
9.84 | 12.60 | 4.88 | 5.43 | 7.87 | 0.50 | 1.70 | 2.0-3.0 | 17,000-22,000 |
| 90-130 | 53-10746-01, SLM 420-6 |
16.54 | 19.02 | 2.09 | 2.64 | 12.60 | 0.25 | 1.30 | 7.6-10.8 | 15,000-20,000 |
| 170-200 | 53-10747-01, SLM 420-10 |
16.54 | 19.29 | 3.50 | 4.06 | 12.60 | 0.38 | 1.90 | 4.1-6.1 | 19,000-27,000 |
| 250-350 | 53-10748-01, SLM 420-14 |
16.54 | 19.29 | 4.88 | 5.43 | 12.60 | 0.63 | 2.55 | 3.1-4.4 | 29,000-40,000 |
| 170-200 | 53-10749-01, SLM 592-6 |
23.31 | 25.79 | 2.09 | 2.64 | 19.37 | 0.31 | 1.70 | 4.0-4.5 | 19,000-26,000 |
| 325-425 | 53-10750-01, SLM 592-10 |
23.31 | 26.06 | 3.50 | 4.06 | 19.37 | 0.50 | 2.55 | 5.7-8.4 | 33,000-46,000 |
| 450+ | 53-10751-01, SLM 592-14 |
23.31 | 26.06 | 4.88 | 5.43 | 19.37 | 0.75 | 3.35 | 4.3-6.1 | 40,000-60,000 |
Setrab oil coolers feature M22 female ports, adaptable to virtually any size using SUSA ProLine Adapter Fittings.
EOC hp and btu/hr range based on specific performance parameters that if varied may result in different performance results. Low EOC hp and btu/hr range based on typical wet sump high-performance application and typical variable parameters. High EOC hp and btu/hr range based on typical dry sump high-performance application and typical variable parameters. Wet Sump Parameters include: oil flow rate, 5gpm; 20/50 engine oil or similar; 130ºF ITD; 60mph airflow. Dry Sump Parameters include: oil flow rate, 8gpm; 20/50 engine oil or similar; 140ºF ITD; 80mph airflow.
ProLine COM Coolers
Setrab ProLine COM range oil coolers offer unique & versatile plumbing opportunities in a heavy-duty high-performance build.
The design of the COM cooler allows for a wider cooler than standard, and the end tanks feature a heavier build.
Setrab ProLine COM range |
|||||||||
| HP range | Part Number | Width (in) | Height (in) | Vol. (qt.) | Wt. (lb.) | ∆P (psi) | btu/hr range | ||
|---|---|---|---|---|---|---|---|---|---|
| Core | Total | Core | Total | ||||||
| 600+ | 52-12864-01, 528COMF-15 Ports: M22x1.5 |
20.88 | 23.50 | 5.25 | 5.88 | 1.10 | 6.15 | 2.6/4.2 | 45,000-66,000 |

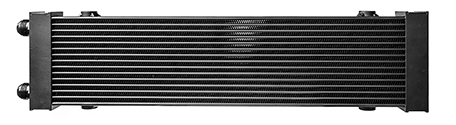

| 600+ | 52-12965-01, 528COMF-15-2P 2-pass Ports: M22x1.5 |
20.88 | 23.50 | 5.25 | 5.88 | 1.10 | 6.15 | 49,000-71,000 | |

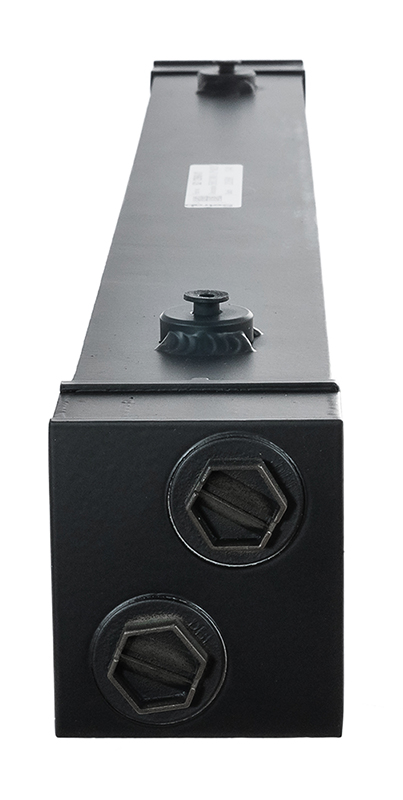

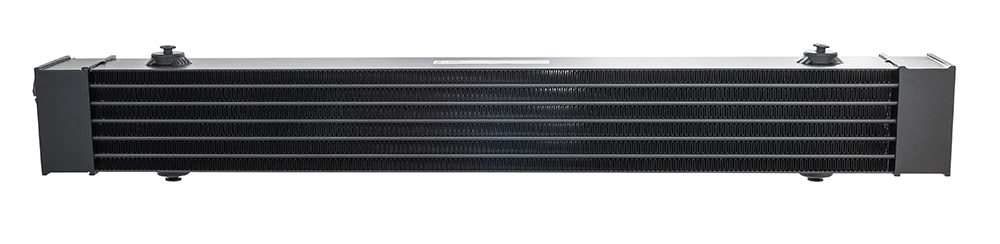

| 52-12968-01 586COMV-5-2P 2-pass Ports: M22x1.5 |
23.07 | 26.22 | 3.03 | 3.15 | 0.88 | 4.90 | |||

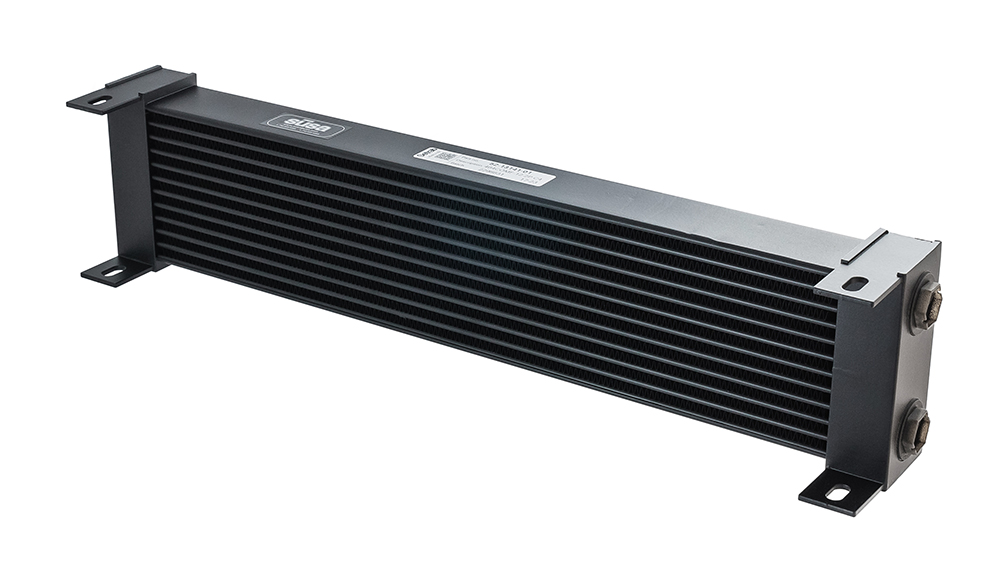

| 52-13141-01 464COMF-12-2P 2-pass Ports: M22x1.5 |
18.27 | 20.94 | 4.22 | 4.77 | 0.99 | 5.50 | |||
Setrab oil coolers feature M22 female ports, adaptable to virtually any size using SUSA ProLine Adapter Fittings.
EOC hp and btu/hr range based on specific performance parameters that if varied may result in different performance results. Low EOC hp and btu/hr range based on typical wet sump high-performance application and typical variable parameters. High EOC hp and btu/hr range based on typical dry sump high-performance application and typical variable parameters. Wet Sump Parameters include: oil flow rate, 5gpm; 20/50 engine oil or similar; 130ºF ITD; 60mph airflow. Dry Sump Parameters include: oil flow rate, 8gpm; 20/50 engine oil or similar; 140ºF ITD; 80mph airflow.
ProLine STD Specialty Coolers
Setrab ProLine Specialty oil coolers alter the flow path of the ProLine STD oil cooler to optimize heat-rejection in specialized oiling systems.
High-gpm flow-rate environments of select dry-sump racing applications may require the additional flow and performance associated with Setrab ProLine Specialty coolers.
The 172M22I-D is a diagonal-flow cooler that offers increased flow-through (reduced restriction) over the standard single-pass 172M22I. Reducing the time the oil spends in the cooler also marginally reduces the heat rejection opportunity, so it is a choice of performance vs. flow that leans more toward flow.
Setrab ProLine STD Specialty range |
||||||||||
| HP range | Part Number | A | B | C | D | E | Vol. (qt.) | Wt. (lb.) | ∆P (psi) | btu/hr range |
|---|---|---|---|---|---|---|---|---|---|---|
| 600+ | 51-07943, 172M22i-D |
6.42 | 22.13 | 4.80 | 7.48 | 8.27 | 0.95 | 5.30 | 0.9/1.1 | 44,000-65,000 |
| 600+ | 51-09401-01 272M22i-D |
7.21 | 22.13 | 5.67 | 8.27 | 9.06 | 1.10 | 5.65 | ||
Setrab oil coolers feature M22 female ports, adaptable to virtually any size using SUSA ProLine Adapter Fittings.
EOC hp and btu/hr range based on specific performance parameters that if varied may result in different performance results. Low EOC hp and btu/hr range based on typical wet sump high-performance application and typical variable parameters. High EOC hp and btu/hr range based on typical dry sump high-performance application and typical variable parameters. Wet Sump Parameters include: oil flow rate, 5gpm; 20/50 engine oil or similar; 130ºF ITD; 60mph airflow. Dry Sump Parameters include: oil flow rate, 8gpm; 20/50 engine oil or similar; 140ºF ITD; 80mph airflow.

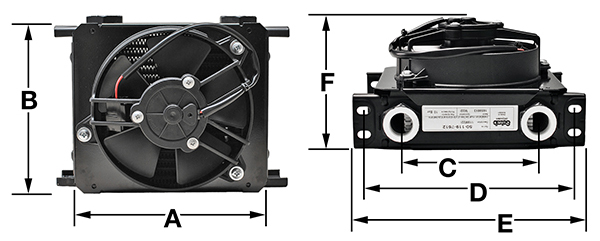

ProLine STD Fanpacks
Setrab ProLine STD Fanpacks combine the already high-performing and versatile heat exchange characteristics of the range of Setrab ProLine STD oil coolers with high-volume, low-profile fans and robust fan shrouds to create a cooling package that is unparalleled in performance and versatility.
Fanpacks |
|||||||||||
| Part Number | A | B | C | D | E | F | Vol. (qt.) | Wt. (lb.) | ∆P (psi) | btu/hr range | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FP119M22i | 6.50 | 5.75 | 4.80 | 7.48 | 8.27 | 5.50 | 0.22 | 3.55 | 2.2/2.6 | 13,000-17,500 | |
| FP625M22i | 11.38 | 7.60 | 9.53 | 12.20 | 12.99 | 4.38 | 0.55 | 5.85 | 2.0/2.5 | 33,100-46,000 | |
| FP634M22i | 11.38 | 10.25 | 9.53 | 12.20 | 12.99 | 4.38 | 0.75 | 8.95 | 1.7/2.2 | 43,000-59,000 | |
| FP910M22IX2 | 14.50 | 6.00 | 12.48 | 15.16 | 15.94 | 5.50 | 0.25 | 7.55 | 6.1 | 19,000-27,000 | |
| FP920M22i | 14.50 | 6.00 | 12.48 | 15.16 | 15.94 | 5.50 | 0.55 | 7.20 | 3.0/4.2 | 35,000-50,000 | |
| FP948M22i | 14.50 | 15.13 | 12.48 | 15.16 | 15.94 | 4.75 | 1.43 | 15.15 | 1.8/3.1 | 69,000-96,000 | |
Setrab oil coolers feature M22 female ports, adaptable to virtually any size using SUSA ProLine Adapter Fittings.
EOC hp and btu/hr range based on specific performance parameters that if varied may result in different performance results. Low EOC hp and btu/hr range based on typical wet sump high-performance application and typical variable parameters. High EOC hp and btu/hr range based on typical dry sump high-performance application and typical variable parameters. Wet Sump Parameters include: oil flow rate, 5gpm; 20/50 engine oil or similar; 130ºF ITD; 60mph airflow. Dry Sump Parameters include: oil flow rate, 8gpm; 20/50 engine oil or similar; 140ºF ITD; 80mph airflow.
