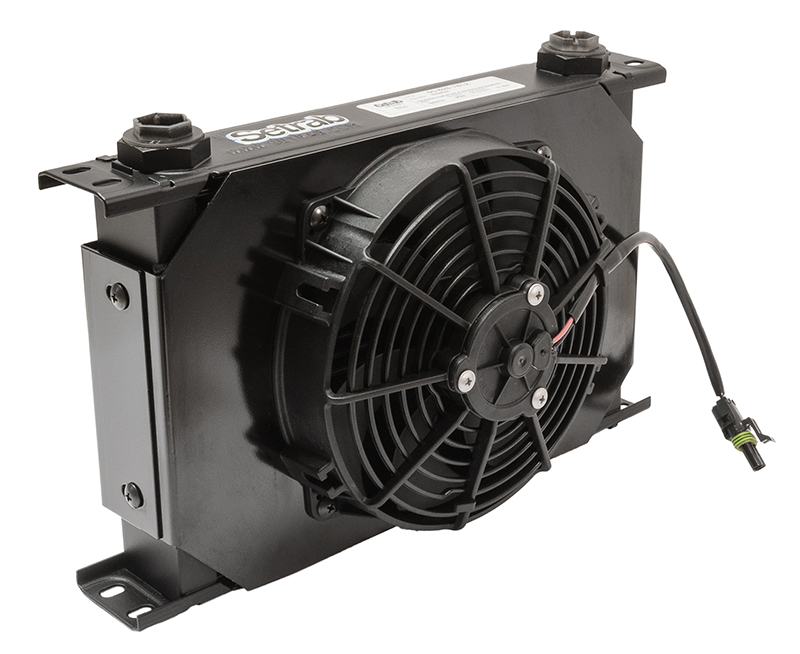

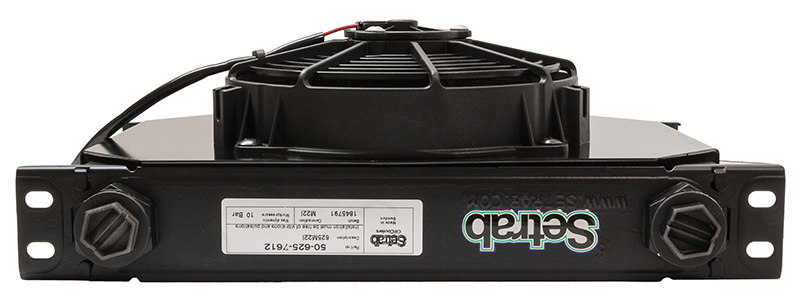

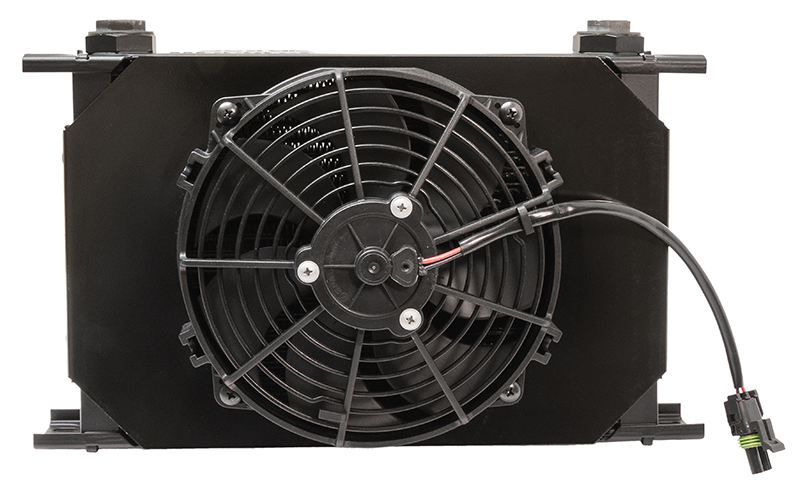

FP625M22I
Compact size and outstanding performance established the 6-series 25-row Setrab ProLine oil cooler as a perennial favorite in many areas of motorsports.
This top-seller's versatility is increased with the addition of a high-performance, low-profile fan and shroud solution.
Slim design packs a hefty punch
Featuring a low-profile 324cfm fan and robust fan shroud to ensure plenty of airflow across the heat exchange surface.
Typical applications:
Engine oil, gearbox, or differential cooling are all within the scope of this all-purpose fan-assisted cooling package.
| Part no. | Width (in.) | Height (in.) | Depth (in.) | Fan | Weight (lbs.) | ||
|---|---|---|---|---|---|---|---|
| Core | Total | Core | Total | incl. fan | |||
FP625M22I |
11.38 | 12.99 | 7.60 | 7.95 | 4.38 | 12V, 324cfm | 5.85 |
Images

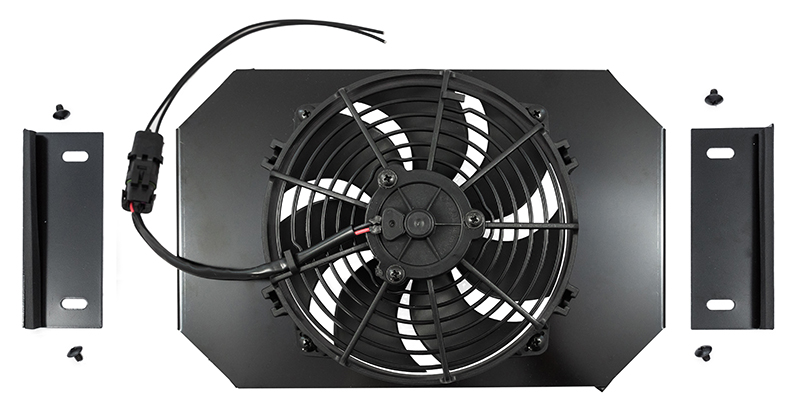

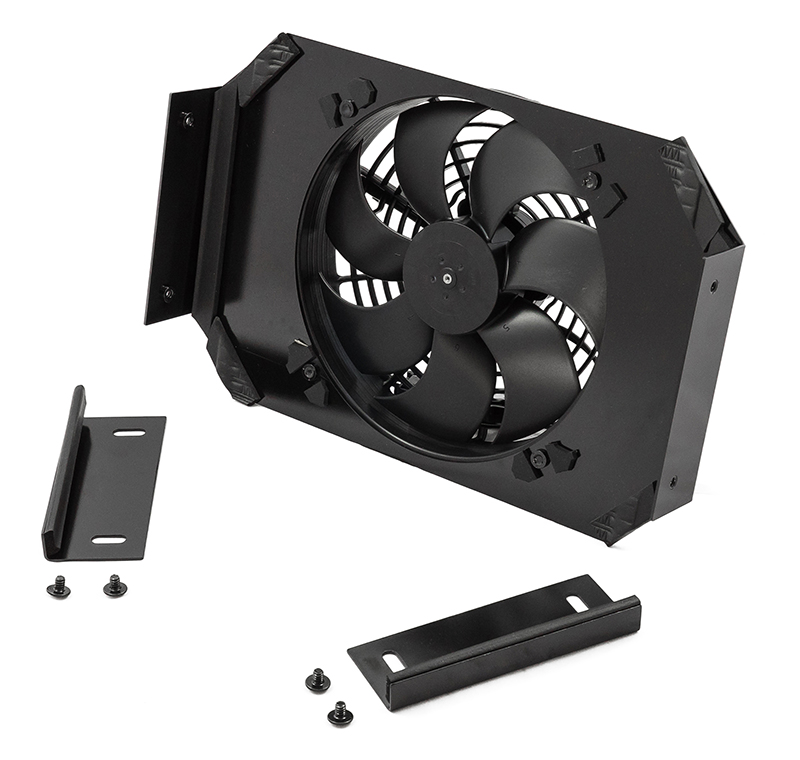

Part # FP625 Kit
Fan Kit
Setrab ProLine Fan Kits include fans and fan-mounting hardware to convert selected sizes of ProLine STD oil coolers in to Fanpacks.
| Part no. | Setrab ProLine STD fitment | Fan |
|---|---|---|
FP625 Kit |
50-625-7612 | 12V, 324cfm |
| 50-650-7612 (x2 kits) |
Images
