Newly updated with dual low-profile
Spal fans
FP910M22IX2
The Setrab FP910M22IX2 dual-circuit fanpack is a single unit designed to cool the oil from two separate circuits, e.g.:
- Differential + gearbox
- Power-steering + auxiliary engine oil cooler

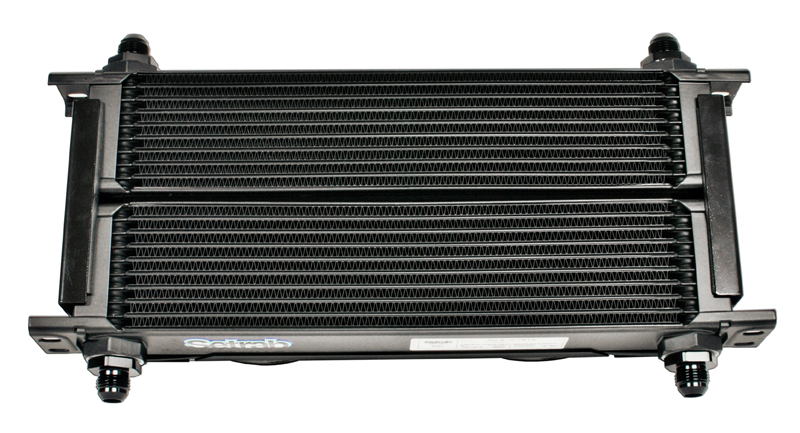

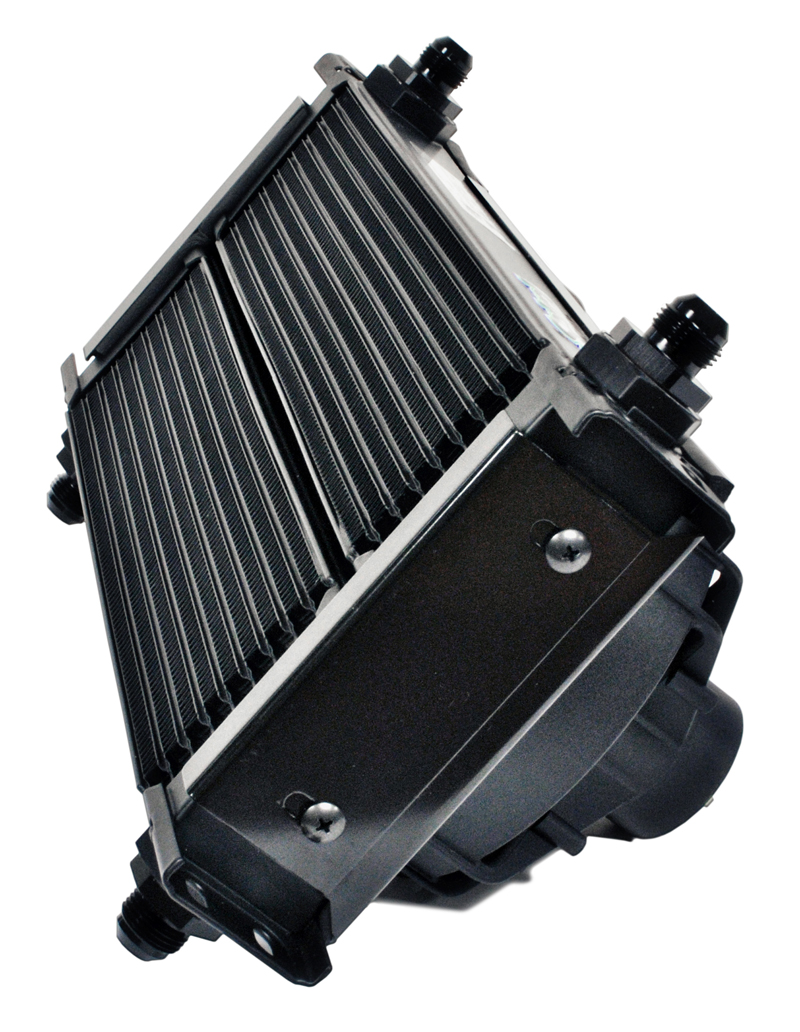

Dual low-profile, sealed-motor Spal fans, mounted to a lightweight and sturdy shroud, pull air across two high-performace Setrab 9-series 10-row coolers (p/n 50-910-7612).
Originally developed for Corvette privateers, this unique cooling pack combination has found favor among podium finishers across all venues of sportscar racing.
| Part no. | Width (in.) | Height (in.) | Depth (in.) | Fan | Weight (lbs.) | ||
|---|---|---|---|---|---|---|---|
| Core | Total | Core | Total | incl. fan | |||
FP910M22IX2 |
14.25 | 16.00 | 6.00 | 6.35 | 4.38 | 2x 12V, 684cfm | 7.55 |
