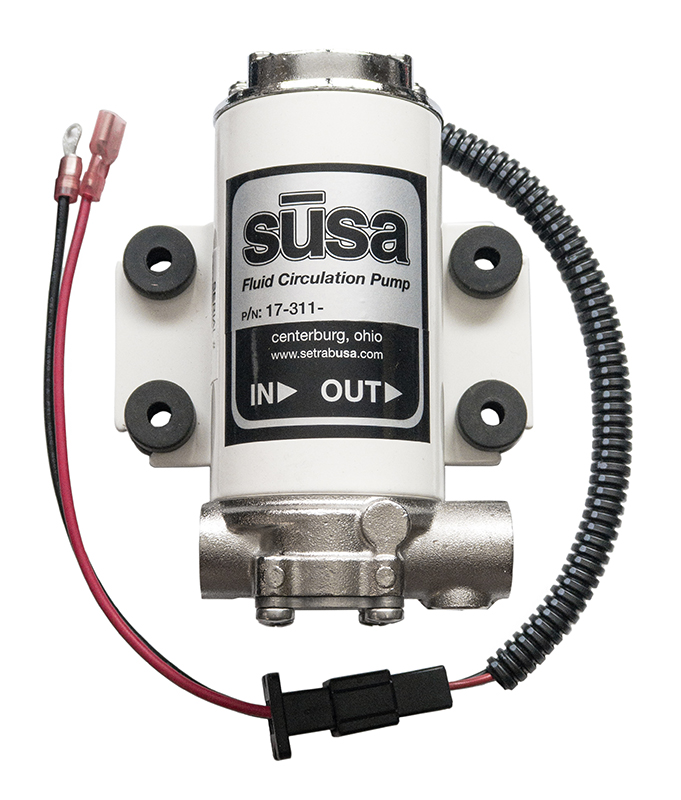

sūsa Mini Gear Oil Circulation Pump
The sūsa mini gear oil circulation pump is a 12V positive displacement pump with no internal bypass. Typical applications are differential/gearbox cooling circuits.
This self-priming pump is designed to circulate oil and water-based fluids, features bronze helical gears and nickel-plated brass pump head. Rated IP-67 for all-weather performance.
Compact, lightweight, and durable, the sūsa oil circulation pump complements the entire range of sūsa differential/gearbox cooling components, creating a high-performance systems solution.
| Pump Specifications | |
|---|---|
| Ports | 3/8" BSPP |
| Max. work pressure | 22 psi |
| Max. work temp. | Tested to 250 ºF |
| Flow rate | 0.9 gpm (1/2" ID hose) |
| Self priming | 5 ft (wet gears) |
| Compatible fluids | Oil with viscosity < 350 cSt |
| Pump head | Brass, nickel-plated |
| Gears | Bronze, helical |
| Motor | 12 V with stainless-steel shaft and fluoroelastomer lip seal, rated IP-67 |
| Amperage draw | 2.5 A / 12 V |
| Weight | 2.6 lb without fittings or filter |

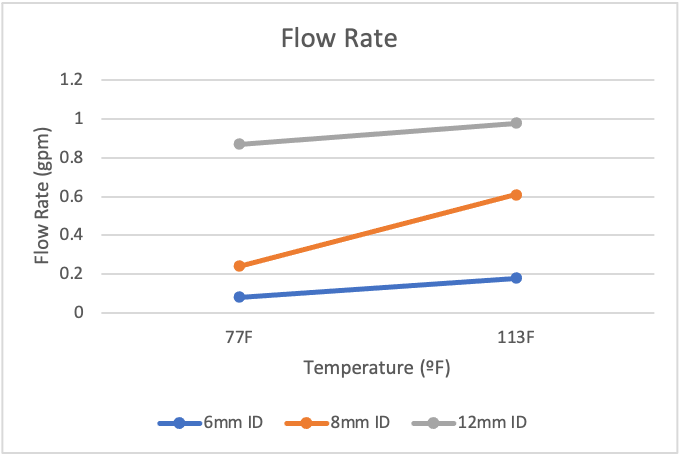

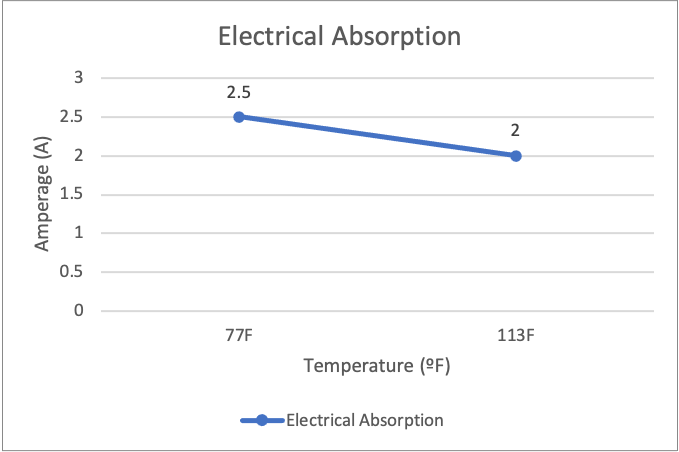

Performance Data
 |
 |
Available configurations:
| Fitting size | Filter included | Part Number |
|---|---|---|
| NONE | NO | 17-311-00-0005 |
| –6 | NO | 17-311-06-0005 |
| 150µ | 17-311-06-IF05 | |
| –8 | NO | 17-311-08-0005 |
| 150µ | 17-311-08-IF05 | |
| –10 | NO | 17-311-10-0005 |
| 150µ | 17-311-10-IF05 |
