Take-off Plate - Billet

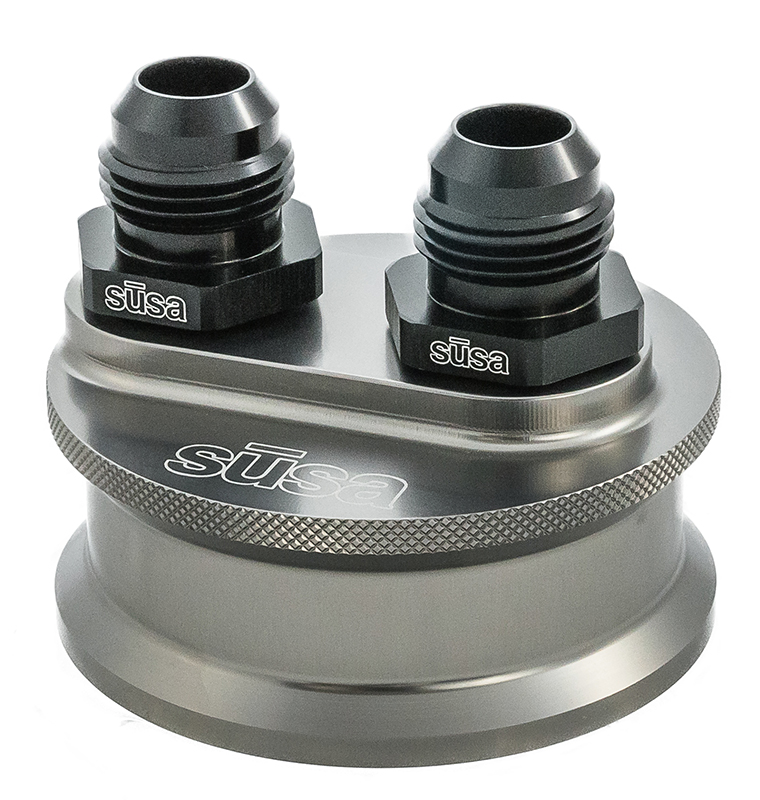

Shown with AN fittings (sold separately)
76mm OD
Spin-on take-off plates replace a spin-on oil filter at the oil filter housing, allowing installation of a remote oil filter and facilitating access to oil supply for the installation of an external oil cooler.

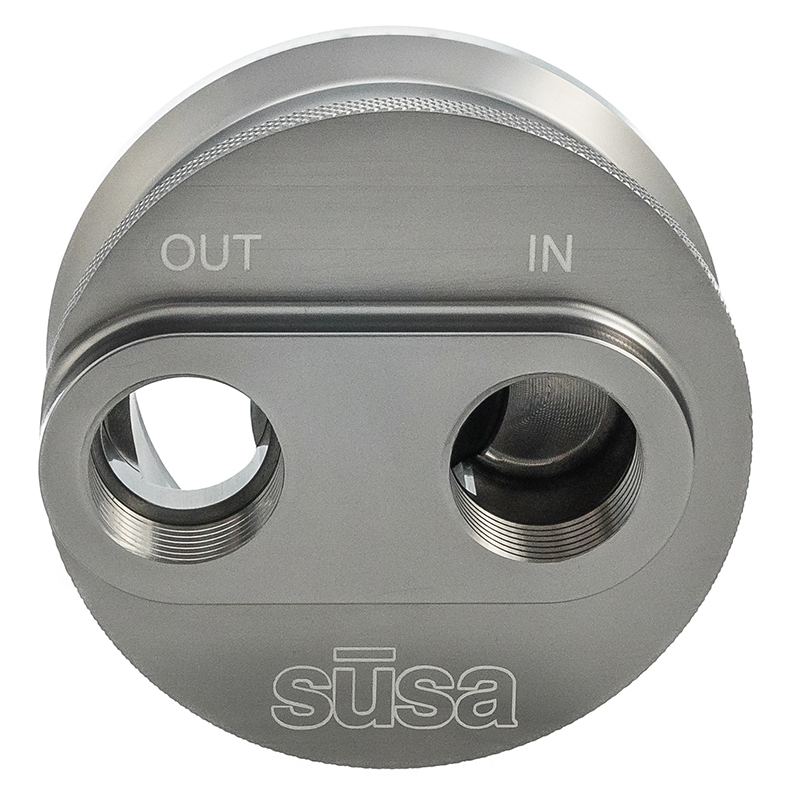

Female M22 ProLine ports allow easy adaptation to AN fitting size of choice (sold separately: see p/n ProLine Adapter Fittings.
Specifications

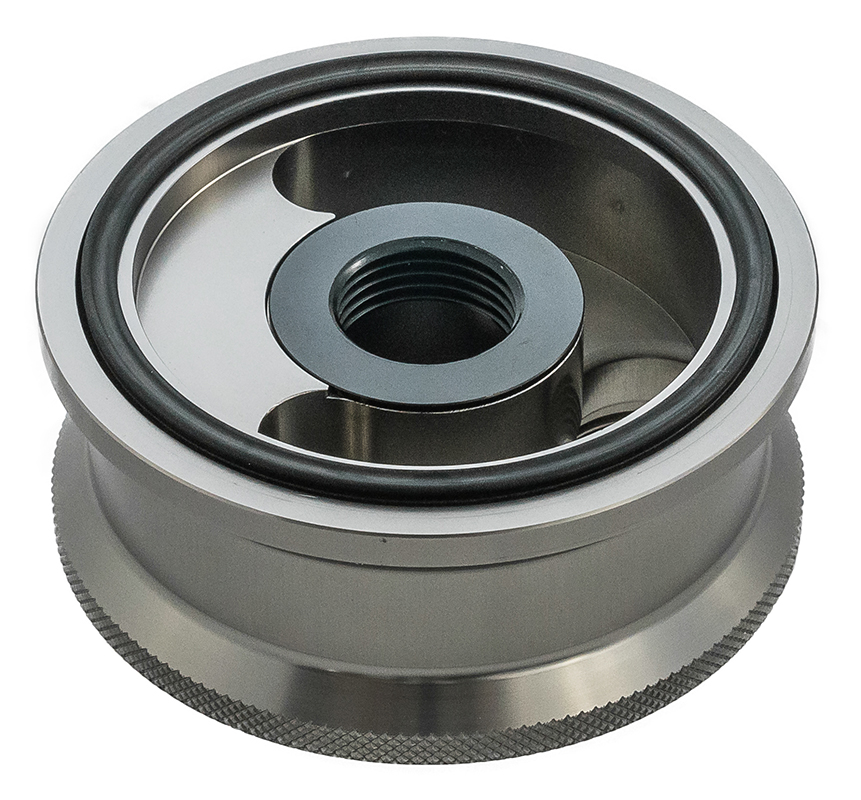

| O-ring ID | O-ring OD | Fitting port thread | Filter thread | Part Number |
|---|---|---|---|---|
| 2.359 in (59.92 mm) |
2.637 in (66.98 mm) |
ProLine M22x1.5 | 13/16"-16 | 18-TOP76-13-22 |
| M20x1.5 | 18-TOP76-20-22 | |||
| M22x1.5 | 18-TOP76-22-22 | |||
| 3/4"-16 | 18-TOP76-34-22 |
