sūsa LS Oil Cooler Adapter

With the potential for fantastic performance to be dropped into virtually any project, its easy to see why few crate motors have inspired and empowered the builder community like the prolific LS family of modern American V-8 motors from GM.

The sūsa LS Oil Cooler Adapter is a natural match for LS-based projects that deserve a cooling solution commensurate with the investment of time and effort they took to build.

Machined from billet aluminum and anodized in a sleek titanium finish, the sūsa LS Oil Cooler Adapter is a reliable, high-performing solution to install a cooler on LS-powered platforms. Full flow is directed out to external oil cooler and back full-time.

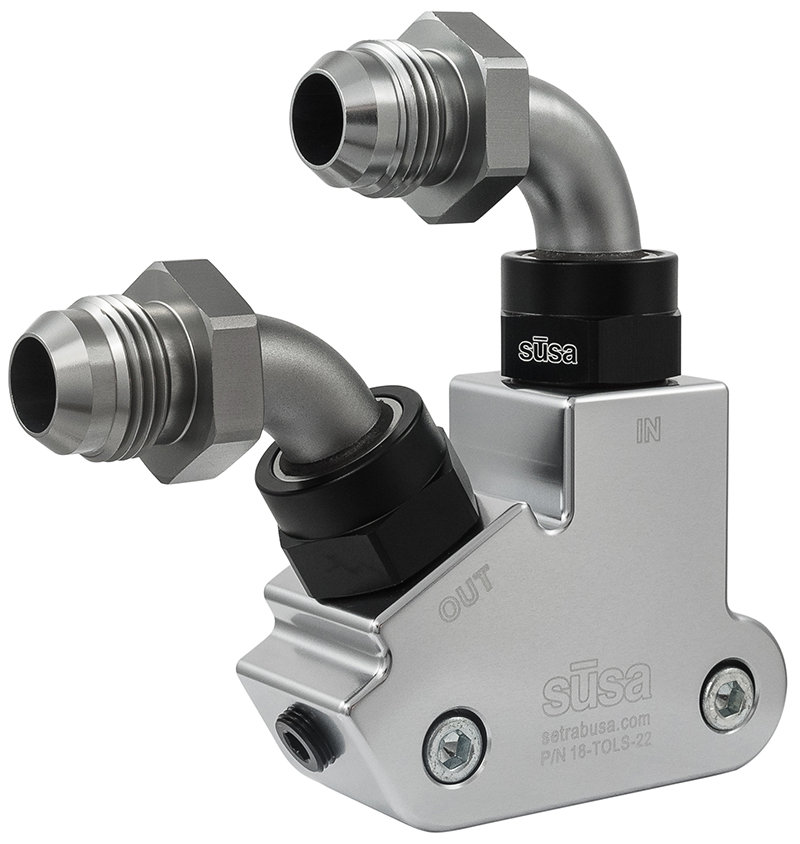

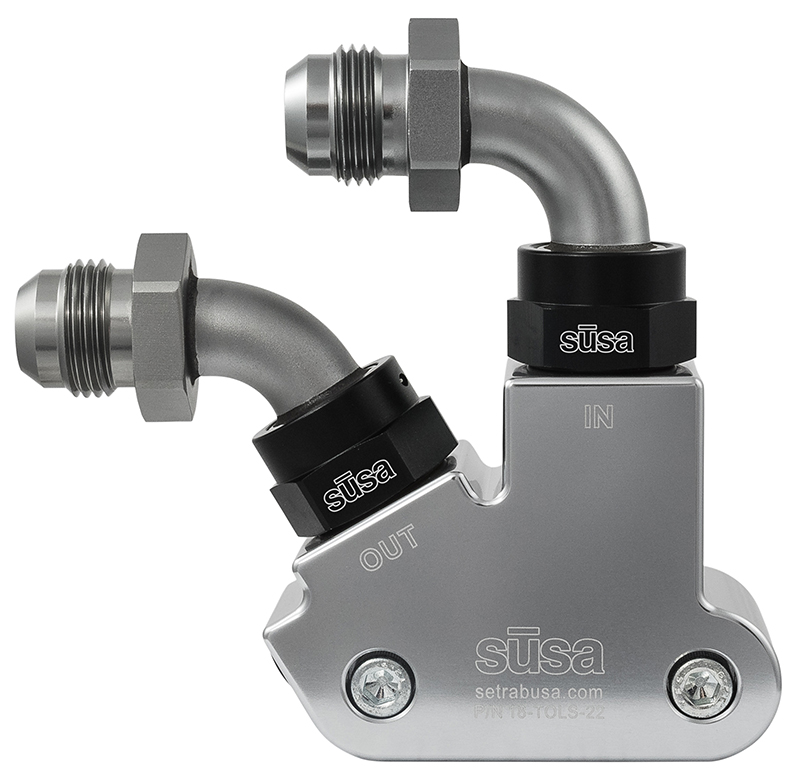

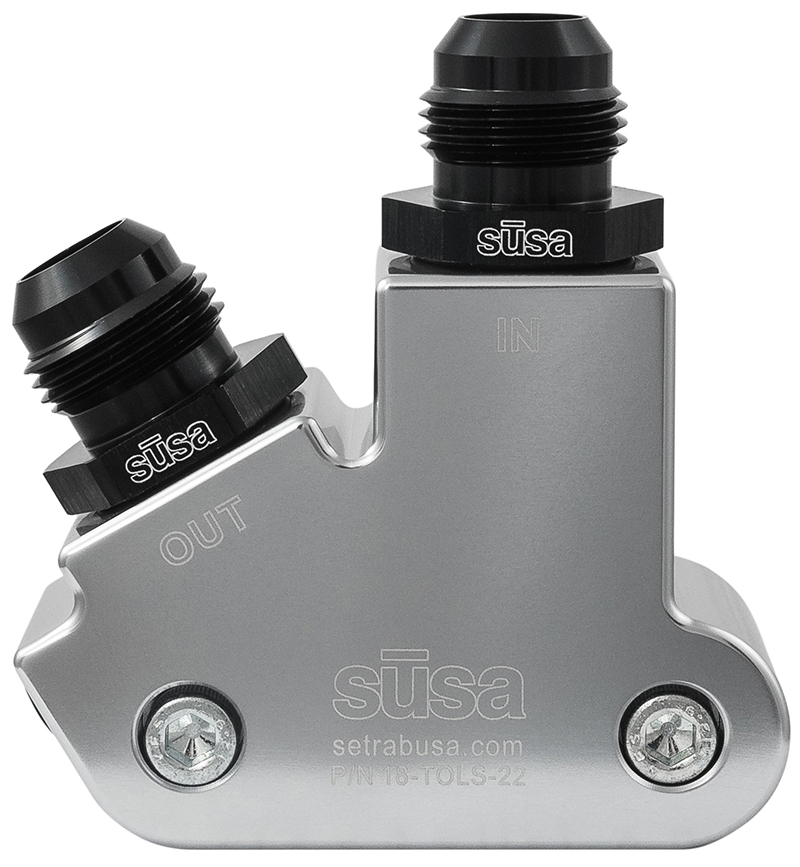

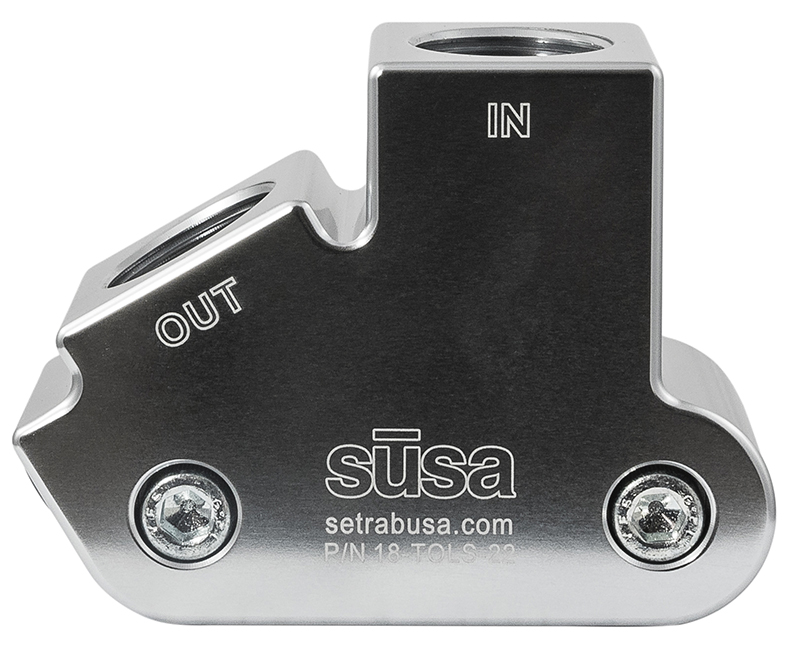

susa LS Oil Cooler Adapter

Shown with sūsa ProLine AN Adapter Fittings
& Reusable Hose Ends sold separately

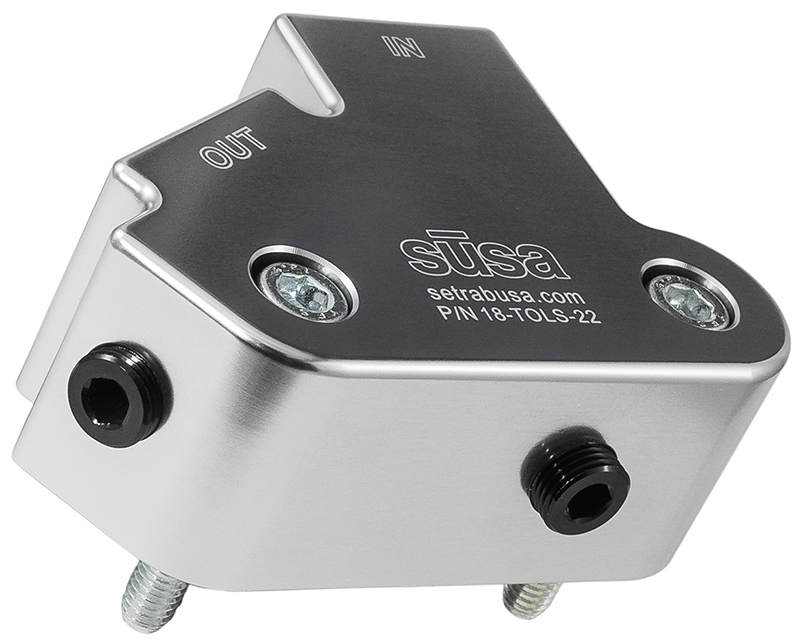

Includes sūsa ProLine M22 ports for easy installation of adapter fittings or sūsa ProLine direct-port hose ends for plumbing an oil cooler and dual 1/8" NPT plugs for gauges and turbo/supercharger oil supply (plumbing diagram included in instructions). Oil passageways are machined for high flow characteristics.

Built to perform from street to track, the sūsa LS Oil Cooler Adapter provides easy access for performance plumbing needs. Designed for performance, reliability, and integration with sūsa ProLine adapter fitting system.

Installation instructions

Description Part Number
Fitting ports Add'l ports
ProLine M22x1.5 (2x) 1/8" NPT 18-TOLS-22

Service & Accessory Items

Description Part Number
Replacement O-rings for Mounting 18-TOLS-22 (sold in pair) 20-568113-N-2
sūsa direct-port adapter kit, M22-AN10, 60º & 90º 222-M22AN10-6090
