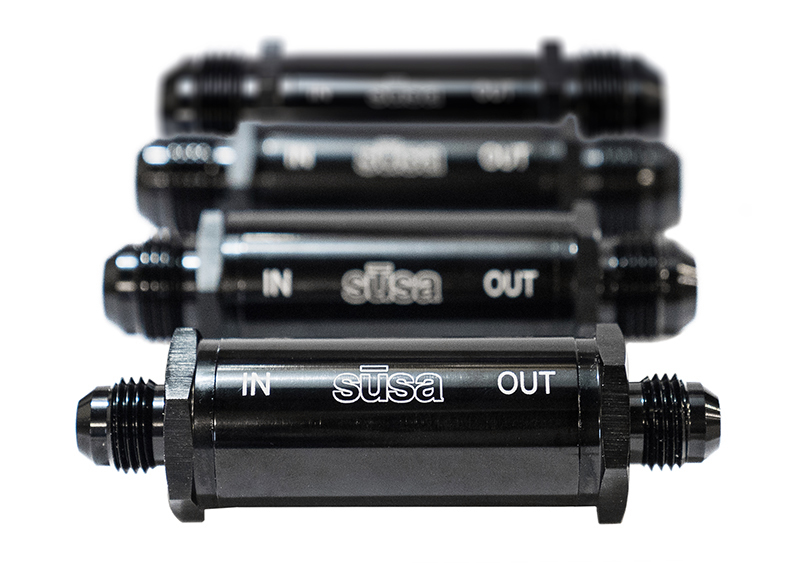

sūsa In-Line Pre-Filters
Install directly in the oil line before an external differential or transmission cooling circuit pump.
High flow volume, low pressure drop, 150 micron absolute filtration, and a strong rare-earth magnet combine to protect high-value pump components.

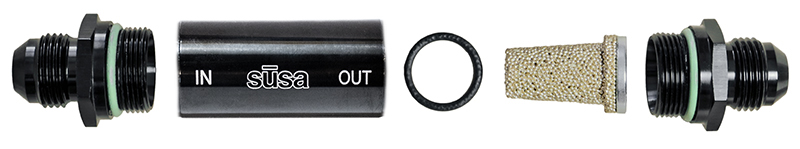

Cleanable/replaceable filter element offers convenience and longevity.
| Micron filtration | AN size | Dimensions: inches (mm) | Part Number | ||
|---|---|---|---|---|---|
| A | B | C | |||

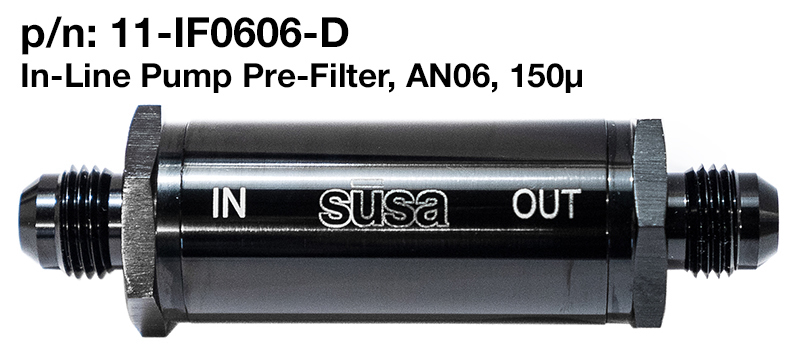

| 150µ | –6 | 3.65 (92.7) | 1.16 (29.4) | 1.00 (25.4) | 11-IF0606-D |

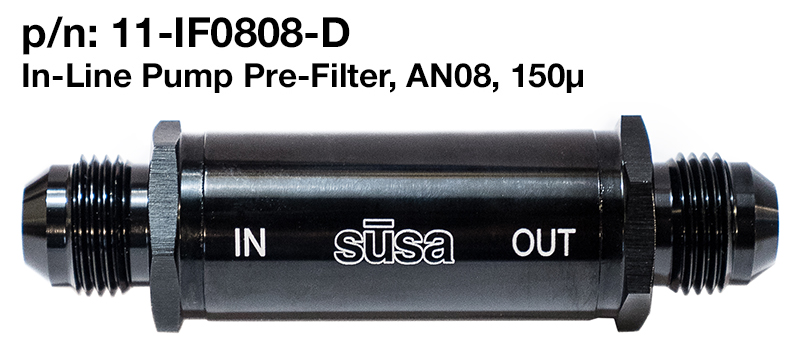

| –8 | 3.89 (98.9) | 1.16 (29.4) | 1.00 (25.4) | 11-IF0808-D | |

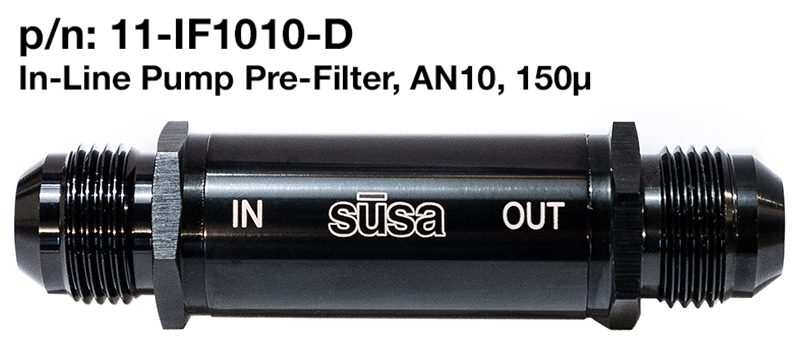

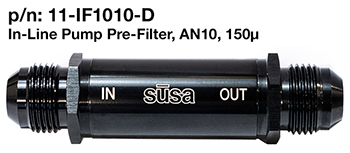

| –10 | 4.07 (103.4) | 1.16 (29.4) | 1.00 (25.4) | 11-IF1010-D | |

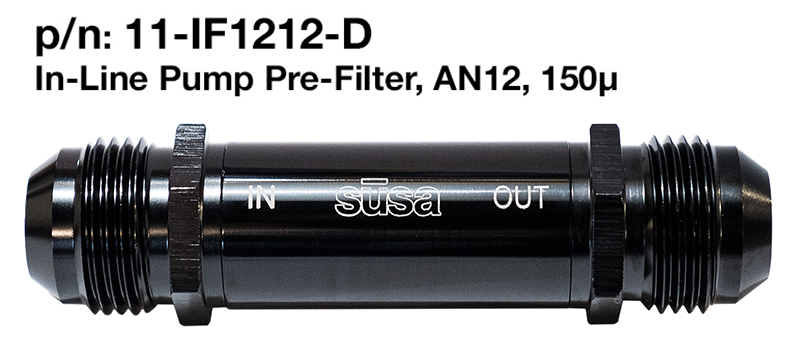

| –12 | 4.52 (114.9) | 1.16 (29.4) | 1.00 (25.4) | 11-IF1212-D | |
 |
|||||
Service kit
| Description | Micron filtration | Part Number |
|---|---|---|
| In-Line Pre-Filter Service Kit | 150µ | 11-SKIF612 |
