FP920M22I-2P

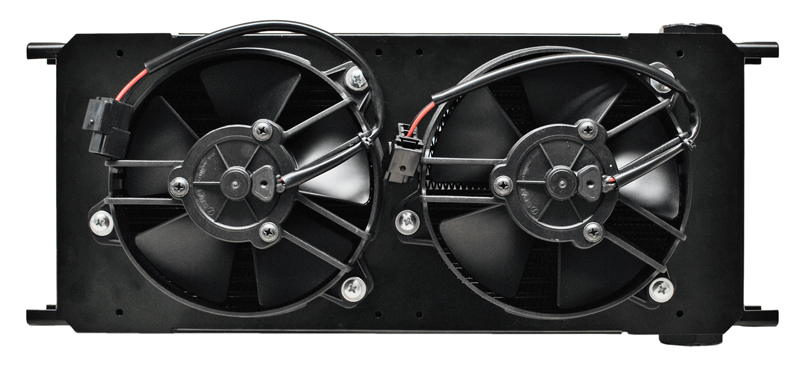

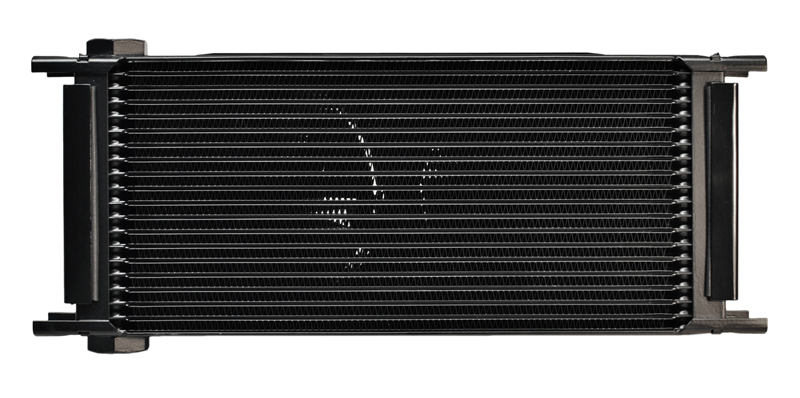

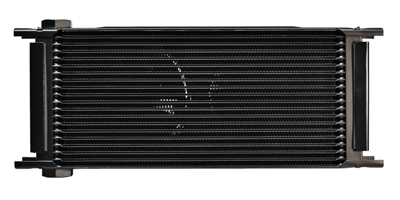

This two-pass Setrab ProLine 9-series 20-row oil cooler (p/n 51-07945-01) with dual low-profile 342cfm sealed-motor Spal fans performs sitting still as if mounted in the direct airflow at 50mph.
It was originally developed in conjunction with engineers at the highest level of stock car racing for differential and transmission cooling duties at the most demanding tracks.
Additionally, the flow characteristics of the two-pass design lend to the engine oil cooling requirements of the motorcycle-powered racing market.
Typical applications:
- Motorcycle-powered racing engine oil cooler (EOC) applications, e.g., Legend cars, Dwarf cars, etc.
- High-performance diff/trans oil cooler
| Part no. | Width (in.) | Height (in.) | Depth (in.) | Fan | Weight (lbs.) | ||
|---|---|---|---|---|---|---|---|
| Core | Total | Core | Total | incl. fan | |||
FP920M22I-2P |
14.25 | 16.00 | 6.00 | 6.35 | 4.38 | 2x 12V, 684cfm | 7.55 |
