Hard line tube adapter assemblies
Easily access the oil supply on vehicles with hard lines with hard line tube adapters. Convert to male or female AN adapter fittings.
- Aluminum construction
- Black anodized finish
- Easy installation

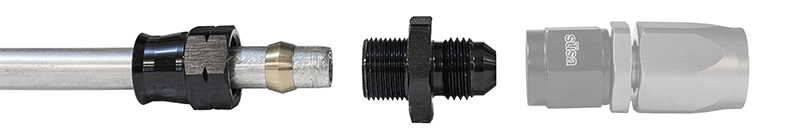

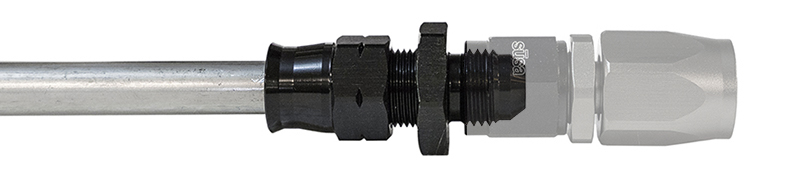

Tube Adapter Assembly, AN Male
(AN-ReUsable hose end sold separately)
| Tube Adapter Assembly | |||
|---|---|---|---|
| Hard Line size | AN size | Part Number | |
| 5/16" | Male | –6 | 22-TU31AN06-00 |
| 3/8" | –6 | 22-TU38AN06-00 | |
| 1/2" | –8 | 22-TU12AN08-00 | |
| 5/8" | –10 | 22-TU58AN10-00 | |
| 3/4" | –12 | 22-TU34AN12-00 | |

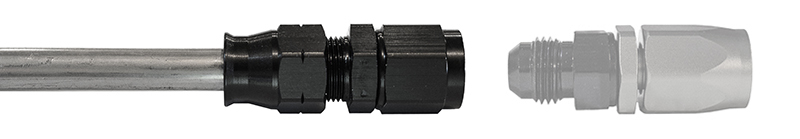

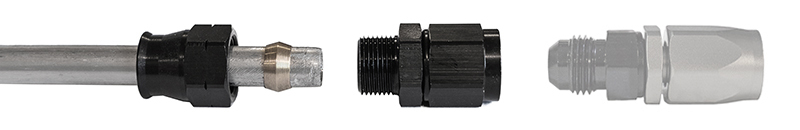

Tube Adapter Assembly, AN Female
(AN-ReUsable hose end sold separately)
| Tube Adapter Assembly | |||
|---|---|---|---|
| Hard Line size | AN size | Part Number | |
| 5/16" | Female | –6 | 22-TU31AN06F-00 |
| 3/8" | –6 | 22-TU38AN06F-00 | |
| 1/2" | –8 | 22-TU12AN08F-00 | |
| 5/8" | –10 | 22-TU58AN10F-00 | |
| 3/4" | –12 | 22-TU34AN12F-00 | |

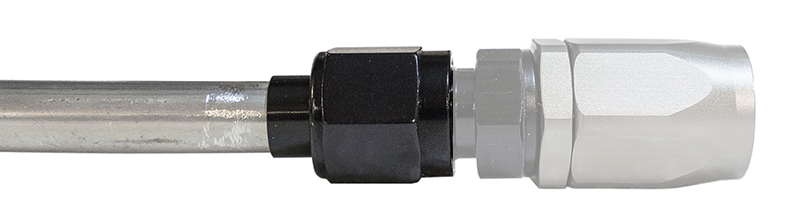

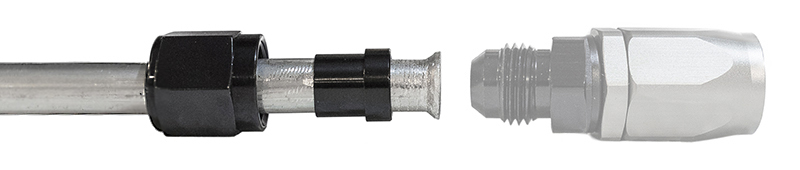

Tube Nut & Sleeve Assembly
(AN-ReUsable hose end sold separately)
Tube nut & sleeve installation requires flaring tube end.
| Tube Nut & Sleeve | |||
|---|---|---|---|
| Hard Line size | AN size | Part Number | |
| 5/16" | Female | –6 | 22-TN05 |
| 3/8" | –6 | 22-TN06 | |
| 1/2" | –8 | 22-TN08 | |
| 5/8" | –10 | 22-TN10 | |
| 3/4" | –12 | 22-TN12 | |
