Specialty Fittings

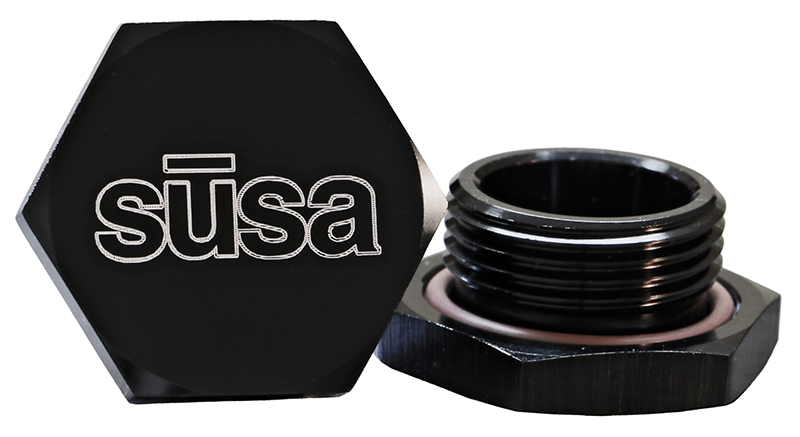

Plugs
Originally designed as plugs for susa multi-port accessories, these specialized stoppers utilize the same captured o-ring channel as all ProLine direct-port fittings. These plugs are perfect for any 22mm x 1.5 orifice with a flat face sealing port.
| Plug size | Part Number |
|---|---|
| M22x1.5 | 22-M22 |

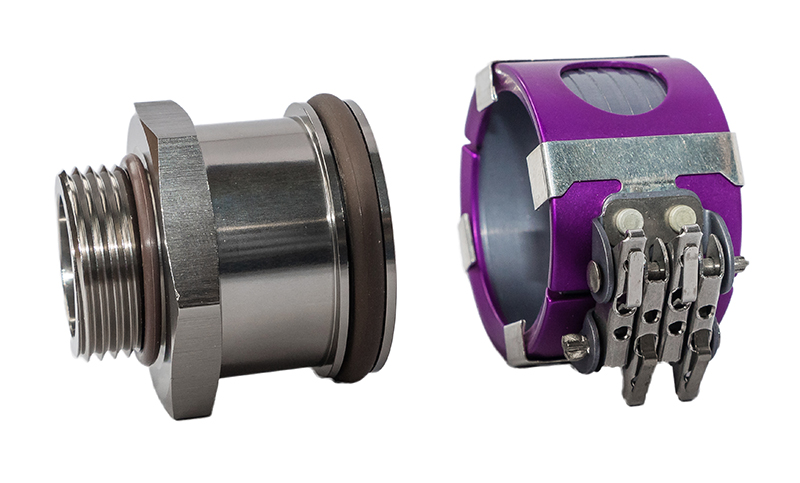

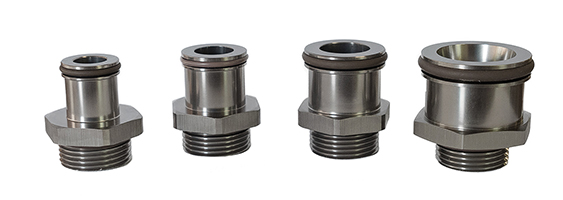

ProLine Wiggins Adapters
Conveniently and quickly connect a Wiggins style hose end directly to a Setrab ProLine oil cooler.
| Wiggins size | Tube size | Part Number |
|---|---|---|
| –8 | 1/2" | 22-M22WGN08-00 |
| –10 | 5/8" | 22-M22WGN10-00 |
| –12 | 3/4" | 22-M22WGN12-00 |
| –16 | 1" | 22-M22WGN16-00 |

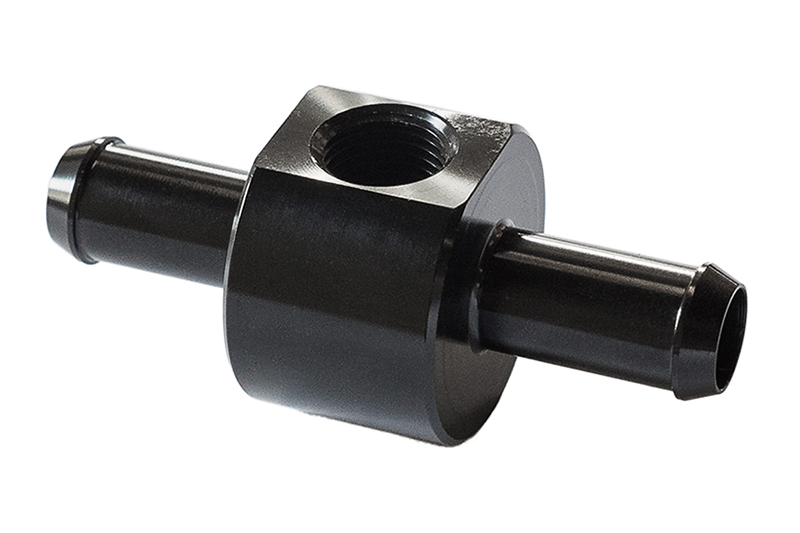

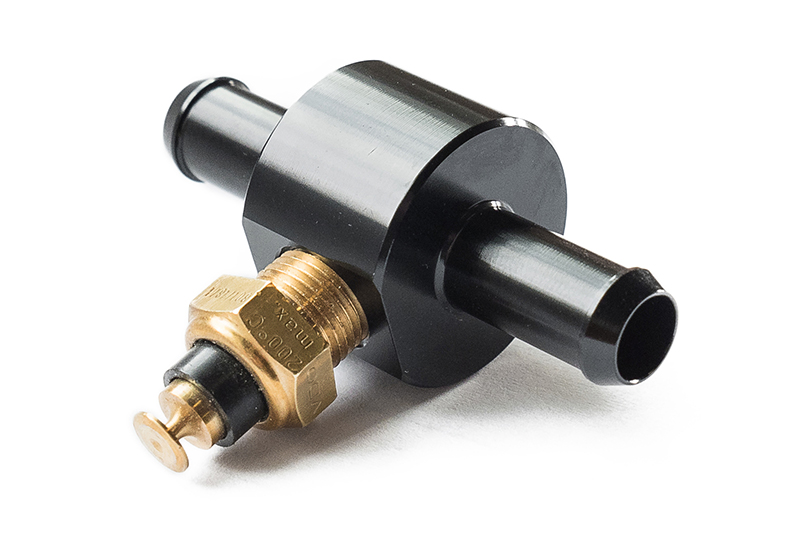

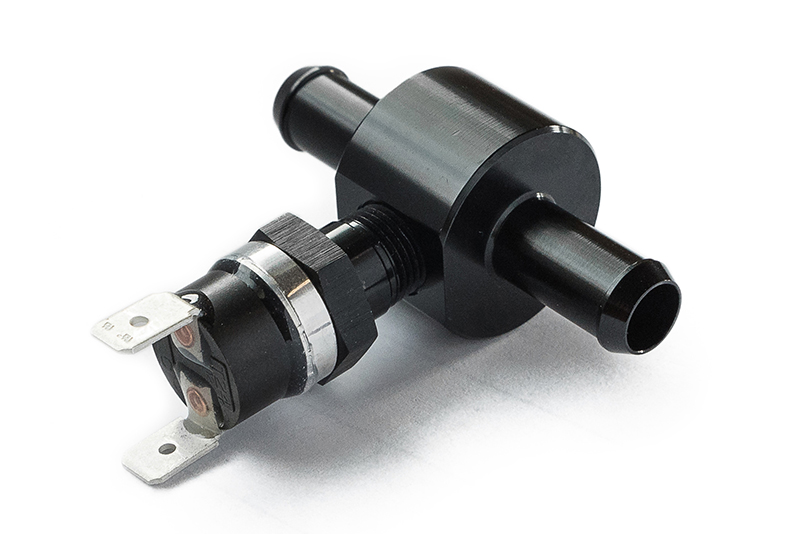

In-line gauge adapter
Install a thermal switch or temperature sending unit anywhere in the oil line with a sleek in-line adapter.
Provides port for installation of 1/8" NPT short thermal switch, temperature sending unit, or similar accessory. Male barbed hose ends are compatible with 3/8" (–6) hose.
Body design maximizes thermal transfer area and accommodates short-thread temperature sending units or thermal switches with least flow obstruction.
| Push-on barb size | Port size | Part Number |
|---|---|---|
| 3/8" | 1/8" NPT | 22-PO3838-NPT18T |

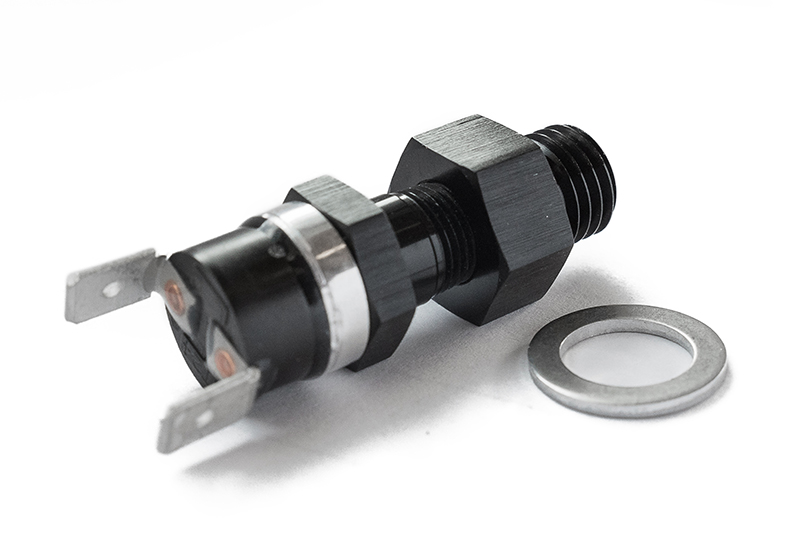

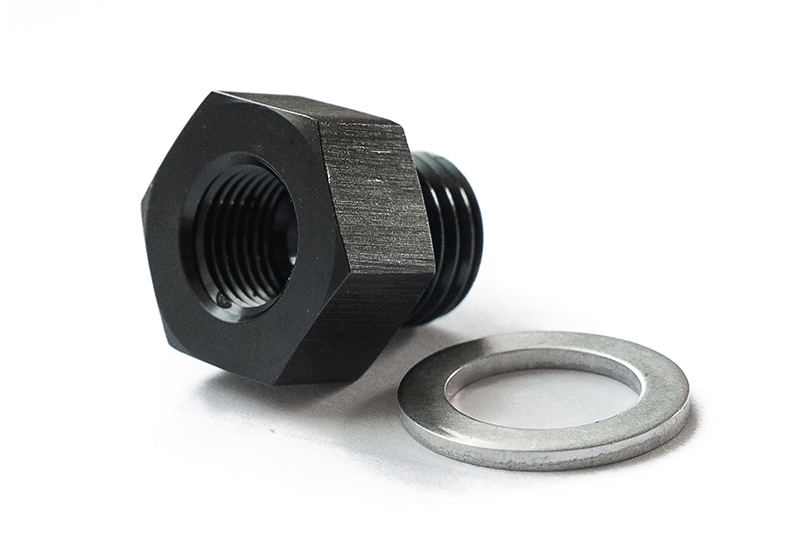

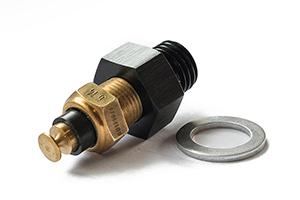

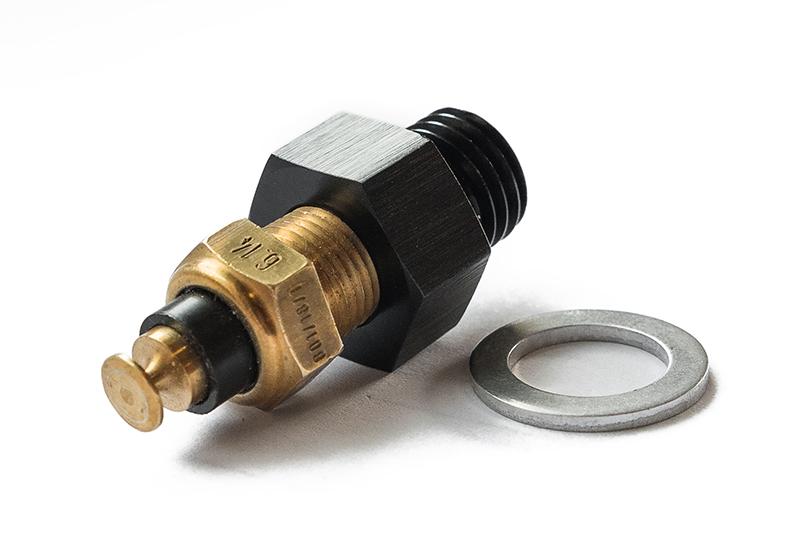

Bushing gauge adapter
Install a thermal switch, temperature sending unit, or pressure sending unit in any M12 port.
Provides common 1/8" NPT versatility for a variety of uses. Machined from aluminum and anodized black. Includes aluminum crush washer.
| Male end | Port size | Part Number |
|---|---|---|
| M12x1.5 | 1/8" NPT | 22-M12NPT18 |
