In-Line Gauge Adapter Fittings

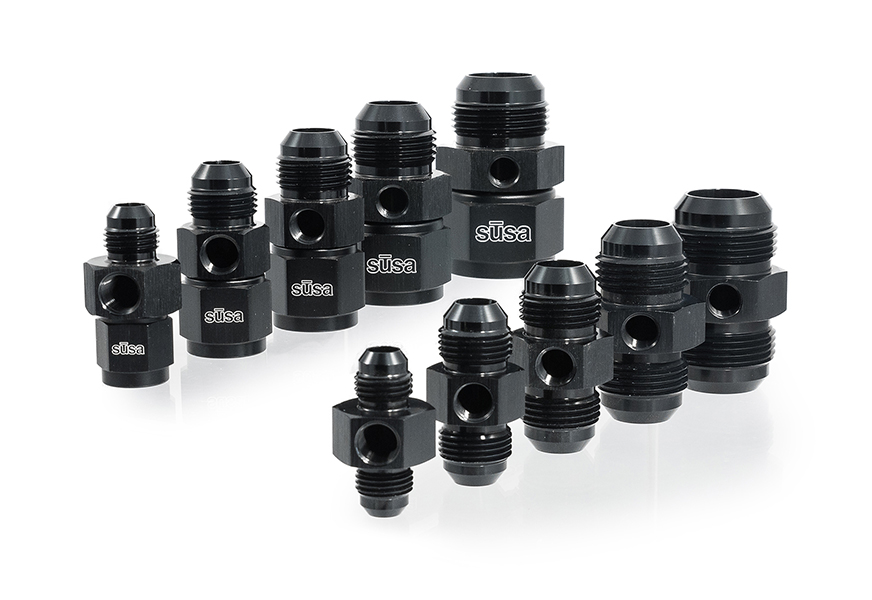

In-line AN Gauge Adapters

sūsa in-line AN gauge adapters can be used for any 1/8" NPT short thread sending unit or probe that needs in-line access to oil supply.

AN female and male connections offer simple in-line installation, and 1/8" NPT port accepts common sending units, thermal switches, and gauge probes.

The tw-piece AN female-male version is fully-clockable 360º after installation.

Also available as assembly with sūsa thermal switch to power 12V accessories.

Female – Male

Port Size	AN Size	Part Number
1/8" NPT	–6	22-AN06AN06-NPT18T
	–8	22-AN08AN08-NPT18T
	–10	22-AN10AN10-NPT18T
	–12	22-AN12AN12-NPT18T
	–16	22-AN16AN16-NPT18T

Male – Male

Port Size	AN Size	Part Number
1/8" NPT	–6	22-AN06MAN06M-NPT18T
	–8	22-AN08MAN08M-NPT18T
	–10	22-AN10MAN10M-NPT18T
	–12	22-AN12MAN12M-NPT18T
	–16	22-AN16MAN16M-NPT18T

In-line Gauge Adapter

Install a thermal switch or temperature sending unit anywhere in the oil line with a sleek in-line adapter.

Provides port for installation of 1/8" NPT short thermal switch, temperature sending unit, or similar accessory. Male barbed hose ends are compatible with 3/8" (–6) hose.

Body design maximizes thermal transfer area and accommodates short-thread temperature sending units or thermal switches with least flow obstruction.

Port Size	Fitting Size	Part Number
1/8" NPT	3/8"	22-PO3838-NPT18T

Bushing Gauge Adapter

Install a thermal switch, temperature sending unit, or pressure sending unit in any M12 port.

Provides common 1/8" NPT versatility for a variety of uses. Machined from aluminum and anodized black. Includes aluminum crush washer.

Port Size	Fitting Size	Part Number
1/8" NPT	M12	22-M12NPT18

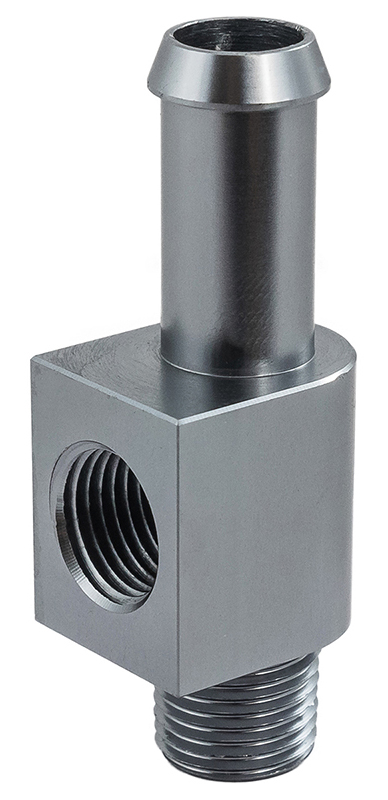

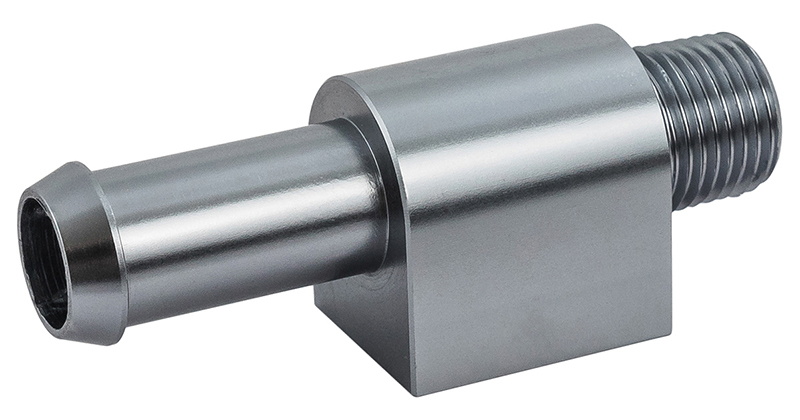

NPT Port 90º Gauge Adapter with Hose Fitting

Adapts 1/8" NPT port 90º and terminates in 3/8" push-on hose barb fitting.

Provides common 1/8" NPT versatility at 90º angle for a variety of uses. Machined from aluminum and anodized silver.

Port Size	Fitting Size		Part Number
1/8" NPT	1/8" NPT Male	3/8" Push-on	22-NPT18PO38-NPT18
